Diamond Core Drilling Motors

Diamond Core Drilling Motors

DD62
Power:
2200 W (230-240 V) |2000 W (220 V) |1700 W (110-120 V)
Capacity:
162 mm (Reinforced Concrete) | 262 mm (Brick)
Type:
Dry drilling (reinforced concrete) | Dry drilling (brick)
View Product

A heavy-duty 2-speed 2200 W dry drilling motor for drilling up to 162 mm in reinforced concrete and 262 mm in brick. Excellent for overhead drilling, operation in sub-zero temperatures and any situation where water cannot be used. Through-the-spindle dust extraction and switchable soft percussion allow optimal dry drilling performance.

  • 2-Speed Gear Box with clutch.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • All metal construction for optimized cooling, durability, and maximum strength.
  • Switchable soft percussion for optimized dry drilling.
  • LED indicator for optimizing drilling efficiency with overload and overheat warning.
  • Hall Effect Switch is completely waterproof and dustproof.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Side Handle in-line with spindle centerline for best control.
  • Built in vertical and horizontal levels for precision.
COMPARE
DM52D
Power:
1800 W
Capacity:
182 mm (7-¼")
Type:
Dry drilling (brick)
View Product

Light, high efficiency 1800 W, 2-speed coring motors for dry drilling up to 182 mm .

  • 2 speed gearbox with clutch for a wide range of sizes.
  • Electronic motor management with soft start, overload and thermal protection.
  • Horizontal spirit level for precise alignment.
  • Side handle in-line with spindle centerline for best control.
COMPARE
DM20
Power:
3700 W /16 A
Capacity:
Ø 500 mm (20")
Type:
Wet Drilling (reinforced concrete)
View Product

The water-cooled permanent magnet synchronous motor provides unprecedented power output efficiency on single phase supply for outstanding performance with large diameters up to 500 mm (20"). The 17-speed integrated controller allows a wide speed range with full torque available at every speed.

  • Water-cooled PMSM motor has the highest output efficiency of any single phase coring motor on themarket.
  • Conveniently runs directly on 230 V single phase supply. The power converter is integrated into the unit,and the automatic PRCD is built-in as well, so you can just plug it in and start drilling! Side Handle in-line with spindle centerline for best control.
  • Oil bath gearbox with mechanical clutch. Due to the special motor characteristics which allow electronic speed selection with no loss of torque, only one mechanical ratio is needed.
  • Anti-seize ring to prevents core bits from getting stuck on the spindle.
  • Water feed inlet can be mounted on either side of the motor for operator convenience.
  • Easy to use operator interface.
  • Rebar assist button makes it much easier to handle embedded steel while drilling.
  • LED display gives bit diameter, as well as mode display, service indicator, hours counter, and error codes.
  • The separate LED load indicator lamp gives reliable information on load and thermal conditions.
  • The electronic speed selection with 17 diameter settings are easy to select, and can be adjusted on the fly.Can be easily changed between metric and inch display units.
  • Bit threading function makes threading on large heavy bits much easier. Simply align the spindle with the bit, press the button once, and it will automatically rotate at low speed to thread the bit on. Press the button once again to stop.
COMPARE
DD160
Power:
2200 W (230 - 240 V) | 2000 W (220 V) | 1700 W (110 - 120 V)
Capacity:
162 mm (Reinforced Concrete) | 262 mm (Brick)
Type:
Dry drilling (reinforced concrete) | Dry drilling (brick)
View Product

A 2-speed 2200 W dry drilling motor for drilling up to 162 mm in reinforced concrete and 262 mm in brick. Excellent for overhead drilling, operation in sub-zero temperatures and any situation where water cannot be used. Throughthespindle dust extraction and switchable soft percussion allow optimal dry drilling performance.

  • 2-Speed Gear Box with clutch.
  • Smart Electronic Control with soft-start,thermal protection, and overload protection.
  • Highly visible LED indicator for optimizing drilling efficiency with overload and overheat warning.
  • Switchable soft percussion for optimized dry drilling.
  • Hall Effect Switch is completely waterproof and dustproof.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Soft-Grip Side Handle in-line with spindlecenterline for best control.
  • Built in horizontal level for precision.
COMPARE
TC20 , TC40 , TC402
Power:
650 W
Capacity:
20 - 40 mm
Type:
Wet or Dry
View Product

Wet or dry tile core drills specially designed for core drilling either blind or through holes in tiles, ceramics, porcelain, stone, concrete, masonry, glass and similar materials. Quick-release spindle for easy clearing of cores.

  • Quick-release collar for easy clearing of cores.
  • Suction Centering Guide for precise hole positioning and control of slurry and/or dust.
  • Pressurized Water Tank with Flow Regulator(optional).
  • 2-speed motor for a wide range of diameters(TC402 only).
COMPARE
DM14
Power:
3500 W /16 A (220 V) | 2800 W / 25 A (110 V)
Capacity:
350 mm
Type:
Wet drilling
View Product

A high efficiency 4 speed, 3500 W motor with Aluminum body, optimized for a wider range of optimum drill sizes in one tool.

  • Sturdy 4-speed Gear Box with oil bath lubrication and mechanical clutch.
  • Advanced Electronic Control with soft-start, thermal protection, and overload protection.
  • Surge Function lets the operator easily know that the motor is near overload conditions by pulsing the motor without actually tripping out.
  • Slow-Start function, a unique automatic hole starting function that reduces motor speed for a short time to allow the kerf to be started.
  • Vertical and horizontal levels for precision.
  • Aluminum housing for better cooling and durability.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Quick-replaceable water seals.
COMPARE
DM9 , DM10 , DM12
Power:
3500 W /16 A (220 V) | 2800 W / 25 A (110 V)
Capacity:
250 mm | 300 mm | 350 mm
Type:
Wet drilling
View Product

High efficiency 3-speed, 3500 W rig-mounted drilling motors with aluminum body. Three models with optimized gearing for different drilling requirements. Choose the version which best suits your drilling needs.

  • Sturdy 3-speed Gear Box with oil bath lubrication and mechanical clutch.
  • Advanced Electronic Control with soft-start, thermal protection, and overload protection.
  • Surge Function lets the operator easily know that the motor is near overload conditions by pulsing the motor without actually tripping out.
  • Slow-Start function, a unique automatic hole starting function that reduces motor speed for a short time to allow the kerf to be started.
  • Vertical and horizontal levels for precision.
  • Aluminum housing for better cooling and durability.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Quick-replaceable water seals.
COMPARE
DM8P
Power:
2500 W (220 V) | 2200 W (110 V)
Capacity:
202 mm
Type:
Wet drilling
View Product

A heavy duty 3-speed 2500 W wet drilling motor for drilling up to 202 mm. Featuring constant speed electronics for even drilling speed and longer core bit life.

  • High output motor with Constant Speed Electronics.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • 3-speed oil bath gear box with clutch.
  • Highly visible LED load indicator for optimizing drilling efficiency.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Side handle in-line with spindle centerline for best control.
COMPARE
DM6P , DM6D
Power:
2200 W (230-240 V) | 2000 W (220 V) | 1700 W (110-120 V)
Capacity:
Wet: Hand-Held : 82 mm (3-1/4") | Rig-Mounted :162 mm (6-1/4")
Type:
Wet drilling
View Product

A heavy duty 3-speed 2200 W wet drilling motor for wet drilling up to 162 mm. Featuring all-metal construction for optimized cooling, durability, and maximum strength.

  • Aluminum alloy construction for optimized cooling, durability, and light weight.
  • Smart electronic motor management with soft start, overload and thermal protection.
  • 3-speed oil bath gearbox with clutch.
  • Side handle in-line with spindle centerline for best control.
  • LED Indicator clearly indicates load conditions.
  • Water supply kit with quick-release water hose adaptor.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Vertical level and horizontal level for precision.
COMPARE
DM5P , DM5D
Power:
1800 W
Capacity:
Wet: 132 mm
Type:
Wet drilling
View Product

A compact, high efficiency 2-speed 1800 W wet drilling motor for drilling up to 132 mm.

  • 2-speed Gear Box with clutch.
  • Smart Electronic Control with thermal protection and overload protection.
  • Side Handle in-line with spindle centerline for best control.
  • Built in horizontal levels for precision.
COMPARE
DM2
Power:
1800 W
Capacity:
Wet: 50 mm
Type:
Wet drilling
View Product

A compact 1-speed 1800 W wet drilling motor designed for fast wet drilling of small diameters from 10 mm up to 50 mm in reinforced concrete. Handles rebar well and is ideal for chemical anchors and similar applications.

  • 1-speed Gear Box with clutch.
  • Smart Electronic Control with thermal protection and overload protection.
  • Side Handle in-line with spindle centerline for best control.
  • Built in horizontal levels for precision.
COMPARE
DM52D , DM52P
Power:
1800 W
Capacity:
Dry: 182 mm | Wet: 82 mm
Type:
Dry drilling (brick) | Wet drilling
View Product

Light, high efficiency 1800 W, 2-speed coring motors for dry drilling up to 182 mm and occasional wet drilling up to 82 mm.

  • 2 speed gearbox with clutch for a wide range of sizes.
  • Electronic motor management with soft start, overload and thermal protection.
  • Horizontal spirit level for precise alignment.
  • Switchable soft percussion for optimized dry drilling.
  • Side handle in-line with spindle centerline for best control.
COMPARE
DMC160
Power:
2200 W (230-240 V) | 2000 W (220 V) | 1700 W (110-120 V)
Capacity:
Dry: 202 mm | Wet: 162 mm
Type:
Wet drilling | Dry drilling
View Product

A 3-speed 2200 W wet and dry drilling motor for drilling up to 162 mm in wet, and 202 mm in dry. An excellent choice for an all-around tool for many tasks.

  • 3-Speed Gear Box with clutch.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • Highly visible LED indicator for optimizing drilling efficiency with overload and overheat warning.
  • Hall Effect Switch is completely waterproof and dustproof.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Side Handle in-line with spindle centerline for best control.
  • Built in horizontal level for precision.
COMPARE
DM62
Power:
2200 W (230-240 V) | 2000 W (220 V) | 1700 W (110-120 V)
Capacity:
262 mm (brick) | 162 mm (reinforced concrete)
Type:
Dry drilling (reinforced concrete) | Dry drilling (brick)
View Product

A heavy-duty 2-speed 2200 W dry drilling motor for drilling up to 162 mm in reinforced concrete and 262 mm in brick. Excellent for overhead drilling, operation in sub-zero temperatures and any situation where water cannot be used. Through-the-spindle dust extraction and switchable soft percussion allow optimal dry drilling performance.

  • 2-Speed Gear Box with clutch.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • All metal construction for optimized cooling, durability, and maximum strength.
  • Switchable soft percussion for optimized dry drilling.
  • LED indicator for optimizing drilling efficiency with overload and overheat warning.
  • Hall Effect Switch is completely waterproof and dustproof.
  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Side Handle in-line with spindle centerline for best control.
  • Built in vertical and horizontal levels for precision.
COMPARE
DME52D
Power:
1800 W
Capacity:
Dry: 182 mm
Type:
Dry drilling (brick)
View Product

A compact, high efficiency 2-speed 1800 W drilling motor for dry drilling up to 182 mm.Suitable for drilling of highly abrasive materials. Switchable soft percussion allows optimal dry drilling performance.

  • Gear box with mechanical clutch.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • Switchable soft percussion for optimized dry drilling.
  • Side Handle in-line with spindle centerline for best control.
  • Built in horizontal levels for precision.
  • External Dust Extractor Head for use with 50 to 82 mm banana slot type bits (Optional).
  • Spring-loaded Centering Pilot for L 85 mm bits or for L 65 mm bits. (Optional).

COMPARE
DME51D
Power:
1800 W
Capacity:
Dry: 102 mm
Type:
Dry drilling (brick)
View Product

A compact, high efficiency 1-speed 1800 W dry drilling motor for drilling up to 102 mm.Suitable for drilling of highly abrasive materials. Switchable soft percussion allows optimal dry drilling performance.

  • Gear box with mechanical clutch.
  • Smart Electronic Control with soft-start, thermal protection, and overload protection.
  • Switchable soft percussion for optimized dry drilling.
  • Side Handle in-line with spindle centerline for best control.
  • Built in horizontal levels for precision.
  • External Dust Extractor Head for use with 50 to 82 mm banana slot type bits (Optional).
  • Spring-loaded Centering Pilot for L 85 mm bits or for L 65 mm bits. (Optional).
COMPARE
DM51D , DM51P
Power:
1800 W
Capacity:
Dry: 102 mm
Type:
Dry drilling (brick)
View Product

Light, compact, high efficiency 1800 W coring motors for dry drilling up to 102 mm.

  • Single speed gearbox with clutch.
  • Electronic motor management with soft start, overload and thermal protection.
  • Horizontal spirit level for precise alignment.
  • Switchable soft percussion for optimized dry drilling.
  • Side handle in-line with spindle centerline for best control.
COMPARE
DMC6P , DMC6D
Power:
2200 W (230-240 V) | 2000 W (220 V) | 1700 W (110-120 V)
Capacity:
Dry: 202 mm|Wet: 162 mm
Type:
Wet drilling | Dry drilling
View Product

A heavy duty 3-speed 2200 W wet and dry drilling motor for drilling up to 162 mm in wet, and 202 mm in dry. Featuring all metal construction for optimized cooling, durability, and maximum strength.

  • Aluminum alloy construction for optimized cooling, durability, and light weight.
  • Smart electronic motor management with soft start, overload and thermal protection.
  • 3-speed oil bath gearbox with clutch.
  • Side handle in-line with spindle centerline for best control.
  • LED Indicator clearly indicates load conditions.
  • Water supply kit with quick-release water hose adaptor.

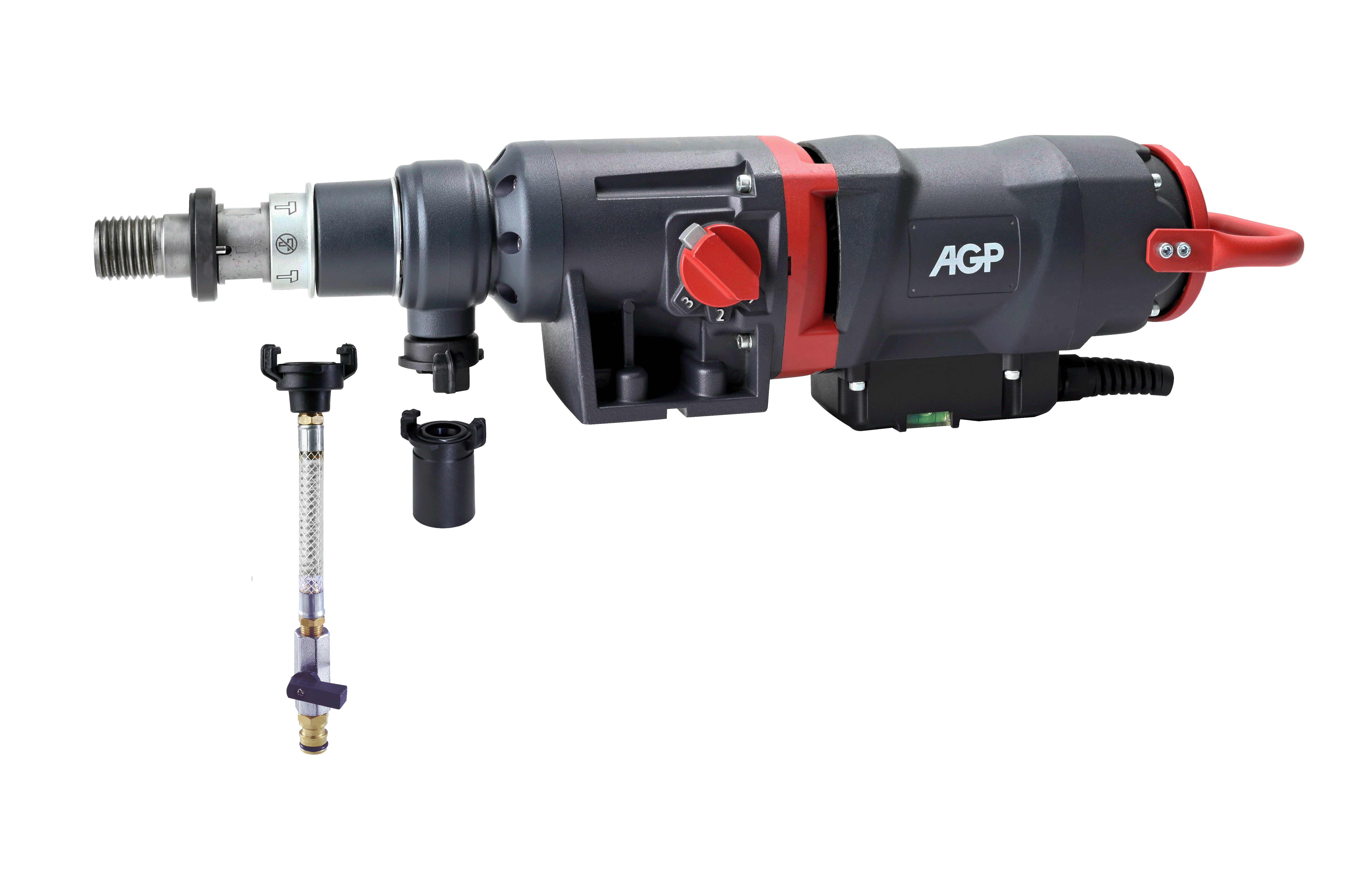

  • Anti-seize ring to keep core bits from getting stuck on the spindle.
  • Vertical level and horizontal level for precision.
COMPARE
Compare
