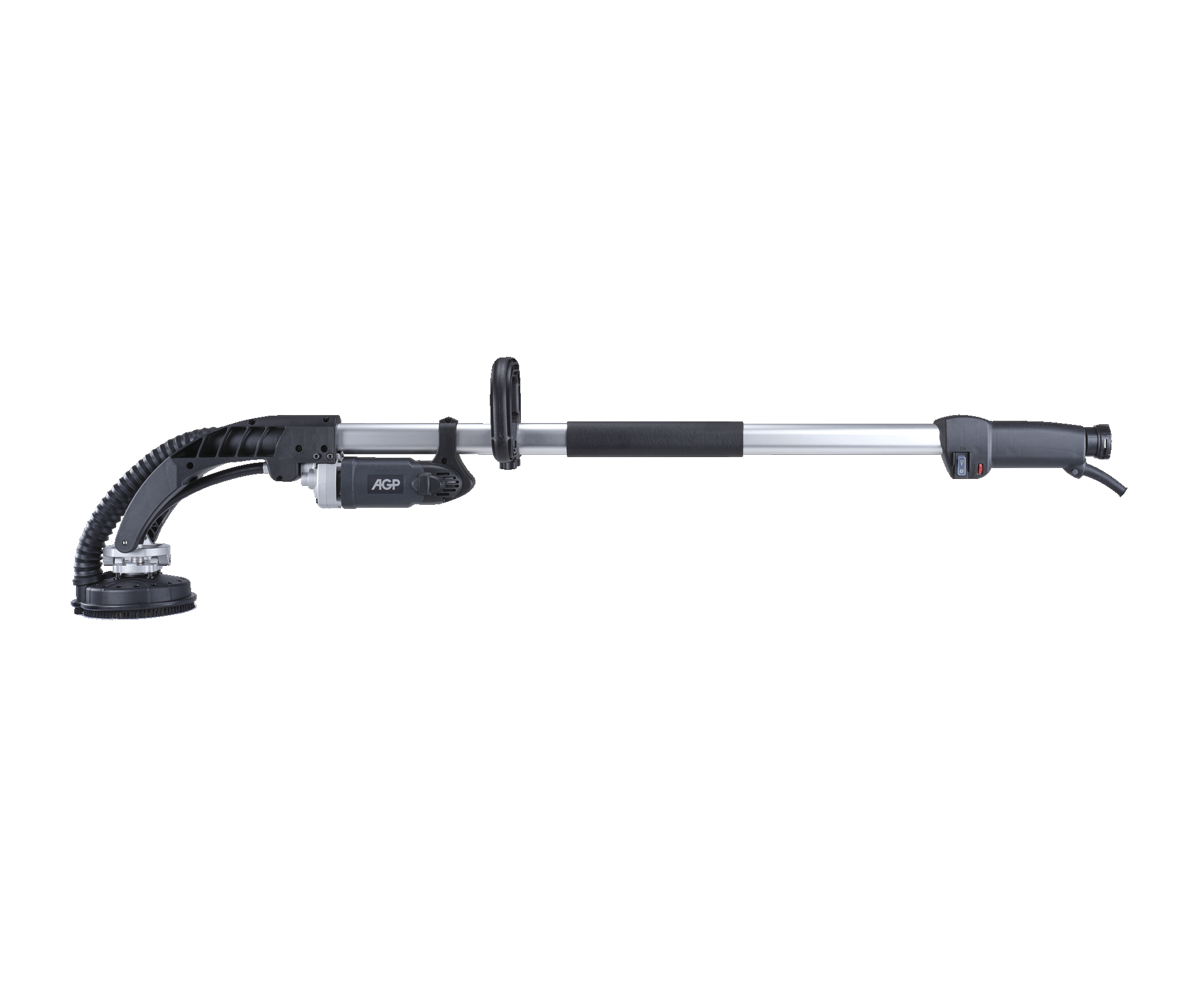

Long-Reach Concrete Grinder

LG125

125 mm long reach grinder for grinding and polishing concrete. A unique tool which allows the operator to grind walls, ceilings, and other hard-to-reach areas with unprecedented ease, while collecting the dust at the same time.

  • Versatility with variable speed adjustment.
  • Motor with soft start & constant speed electronics.
  • Swiveling Bayonet Hose Connector for convenient dust collection.
  • 2-Axis Pivoting Grinding Head with Dust Shroud easy to guide smoothly over the work surface.
  • Soft Grip on column for operator comfort.
Power:
1200 W
Max. Capacity:
125 mm
Type:
Special long reach
Dry Capacity:
Weight:
Specifications
  • Model
  • LG125
  • Power Input
  • 1200 W
  • Voltage
  • 220-240 V~ 50-60 Hz or 110-120 V~ 50-60 Hz
  • No Load Speeds
  • 1700 - 3500 /min
  • Length
  • 1475 mm
  • Max. Capacity
  • 125 mm
  • Arbor
  • 22.23 mm (7/8") or 25.4 mm (1")
  • Spindle
  • M14 or 5/8 -11
  • Soft Start & Overload Protection
  • With
  • Dimensions (L x W x H)
  • 1475 mm x 197 mm x 365 mm
  • Weight
  • 3.8 kg (8.4 lb) ( Not including Diamond Cup Wheel)
  • Exploded View & Parts List
  • Download
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Vacuum Hose 4 M
  • Carry Bag
  • Bail Handle
  • Face Spanner Wrench, 78 mm
  • M17 Wrench
  • Hex Key M6
  • 125 mm Diamond Cup Wheel

Optional Accessories

  • Aluminum Backing Pad (M14)
  • Aluminum Backing Pad (5/8")
