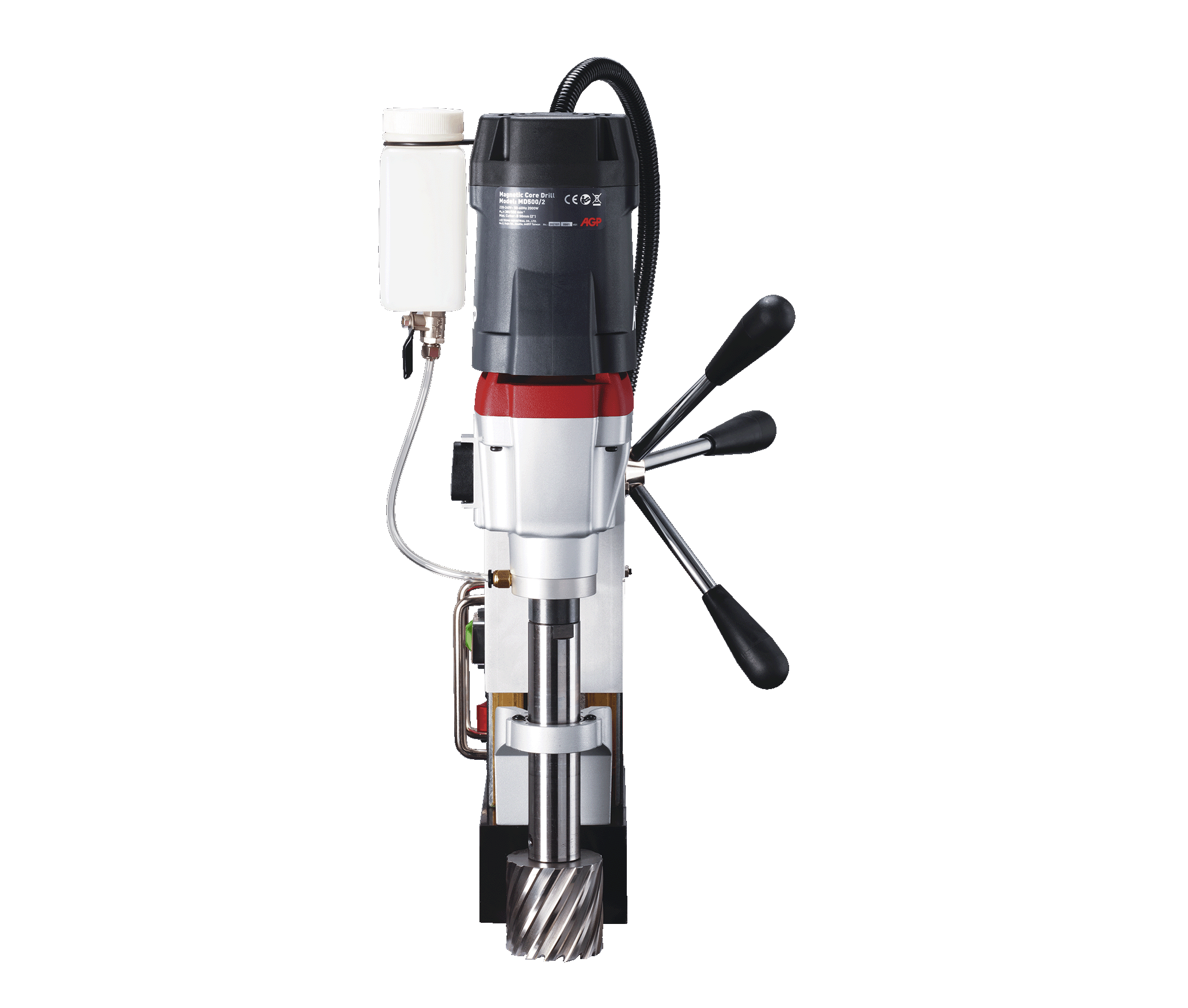

2-Speed Long-Stroke Magnetic Core Drill

MD500/2

A 2 speed 2000 W magnetic drilling machine for cutters up to Ø65 x 75 mm L and twist drills up to 16 mm (5/8") shank. Features extra long cutter capacity.

  • 2 speed gear box for optimized torque and cutting speed for a wide range of cutting tools.
  • Extra Long Cutter Capacity.
  • Arbor Support Bracket.
Power:
2000 W (220 V) | 1700 W (110 V)
Max. Capacity:
Annular Cutters: 65 mm x 75 mm | Twist; Drills: 16 mm shank x 115 mm
Gear:
This is some text inside of a div block.
Type:
Annular Cutting | Twist Drilling
Dry Capacity:
Weight:
Spec
  • Model
  • MD500/2
  • Power Input
  • 2000W (220V), 1700W (110V)
  • Voltage
  • 220-240V~ 50-60Hz or 110-120V~ 50-60Hz
  • No / Full Load min-1 Speed 1
  • 380 / 230
  • No / Full Load min-1 Speed 2
  • 550 / 330
  • Max. Capacity Dia. X Depth of Cut
  • 65 mm x 75 mm (2" x 3")
  • Max. Capacity Dia. X Depth of Twist Drill Bit
  • 16mm x 115mm (5/8" x 4-1/2")
  • Max. Capacity Dia. X Depth of Taps
  • N/A
  • Magnetic Adhesion
  • 32,000 N
  • Overload Protection
  • With
  • Net Weight
  • 21.1kg (46.52 Lbs)
Download & Warranty
No items found.
Accessories

Standard Accessories

  • Wrench M8
  • L-Hex Key M2.5
  • L-Hex Key M4
  • Chip Guard Kit
  • Coolant Tank Kit
  • Ratchet Strap

Optional Accessories

  • Chuck Adaptor
  • 5/8" (16 mm) Chuck & Chuck Key
