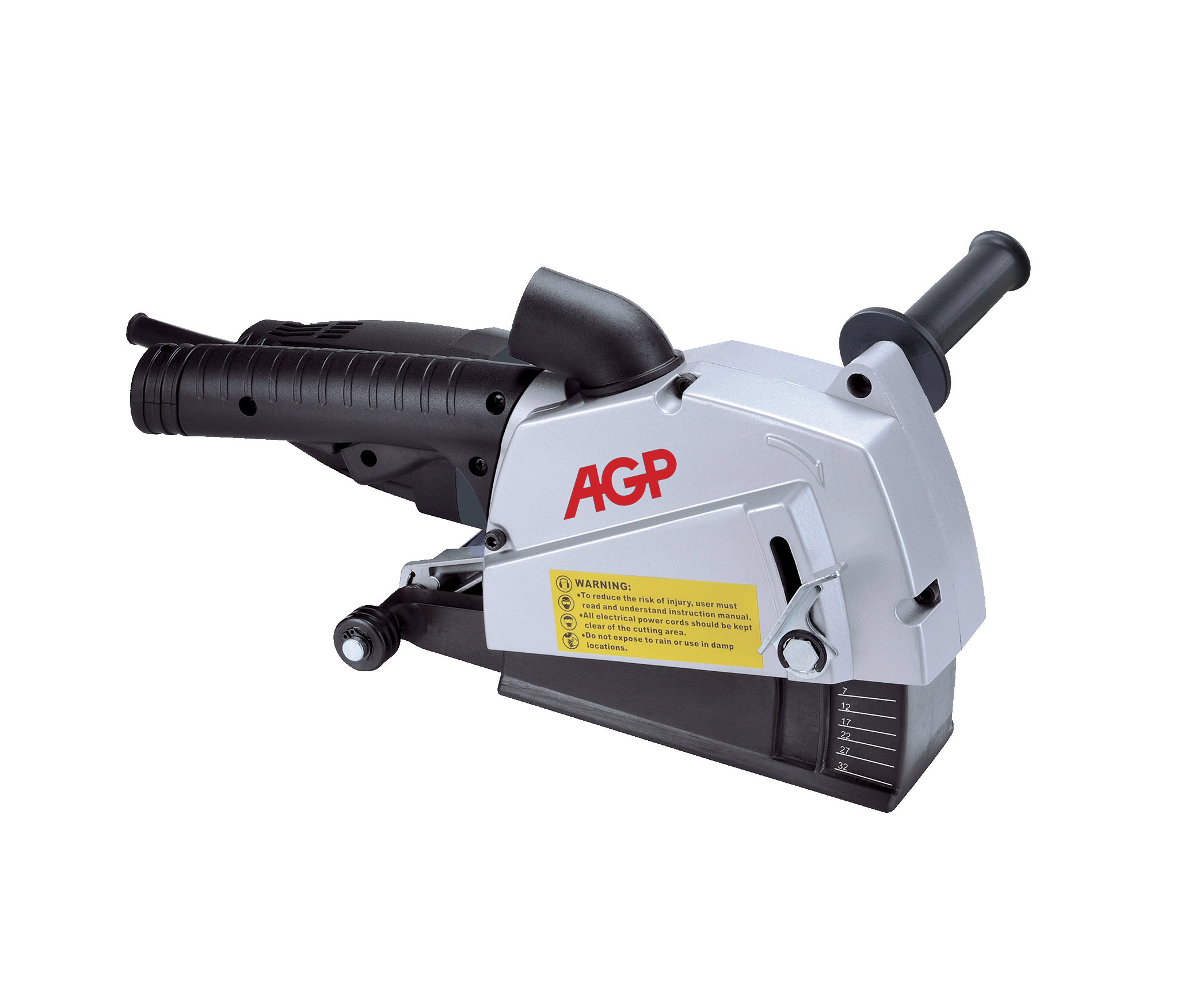

Wall Chaser

CS125N

125 mm wall chaser with 30 mm depth of cut and 45 mm maximum channel width. Clockwise blade rotation. 1500 W motor with constant speed electronics for consistent performance.

  • 1500 W motor with electronic constant speed, soft start, and overload protection
  • Vacuum Port Swivels 3600
  • Ergonomic handle in line with the blades for control
  • Steel Rollers for durability.
  • Adjustable depth of cut for precise channel dimensions
  • Pivoting safety cover for dust control and safety.
Power:
1500 W
Max. Capacity:
45 mm width x 30 mm depth
Type:
Standard
Dry Capacity:
Weight:
Specifications
  • Model
  • CS125N
  • Power Input
  • 1500 W
  • Voltage
  • 220-240 V ~ 50-60 Hz or 110-120 V ~ 50-60 Hz
  • * No Load min·'
  • 6500
  • Bore
  • 22.2 or 30 mm
  • Max. Blade Diameter
  • 125mm
  • Blade Bore Size
  • 22.23 mm (7/8")
  • Max. Cutting Depth
  • 30 mm
  • Soft Start / Overload Protection
  • With
  • Channel Width
  • 8-45 mm
  • Dimensions (L x W x H)
  • 378 mm x221 mm x 196 mm
  • Weight
  • 4.4 kg (9.7 lb )
  • Exploded View & Parts List
  • Download
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Side Handle
  • 4 mm T-Handle Hex Wrench
  • Vacuum Hose End Adaptor
  • 6 mm L-Hex Wrench
  • Spacers
  • Spacers
    40 mm x 22.2 mm x 6 mm x2
    40 mm x 22.2 mm x 4 mm x1
    40 mm x 22.2 mm x 10 mm x1
    40 mm x 22.2 mm x 15 mm x1

Optional Accessories

  • 125 mm Diamond Blade
