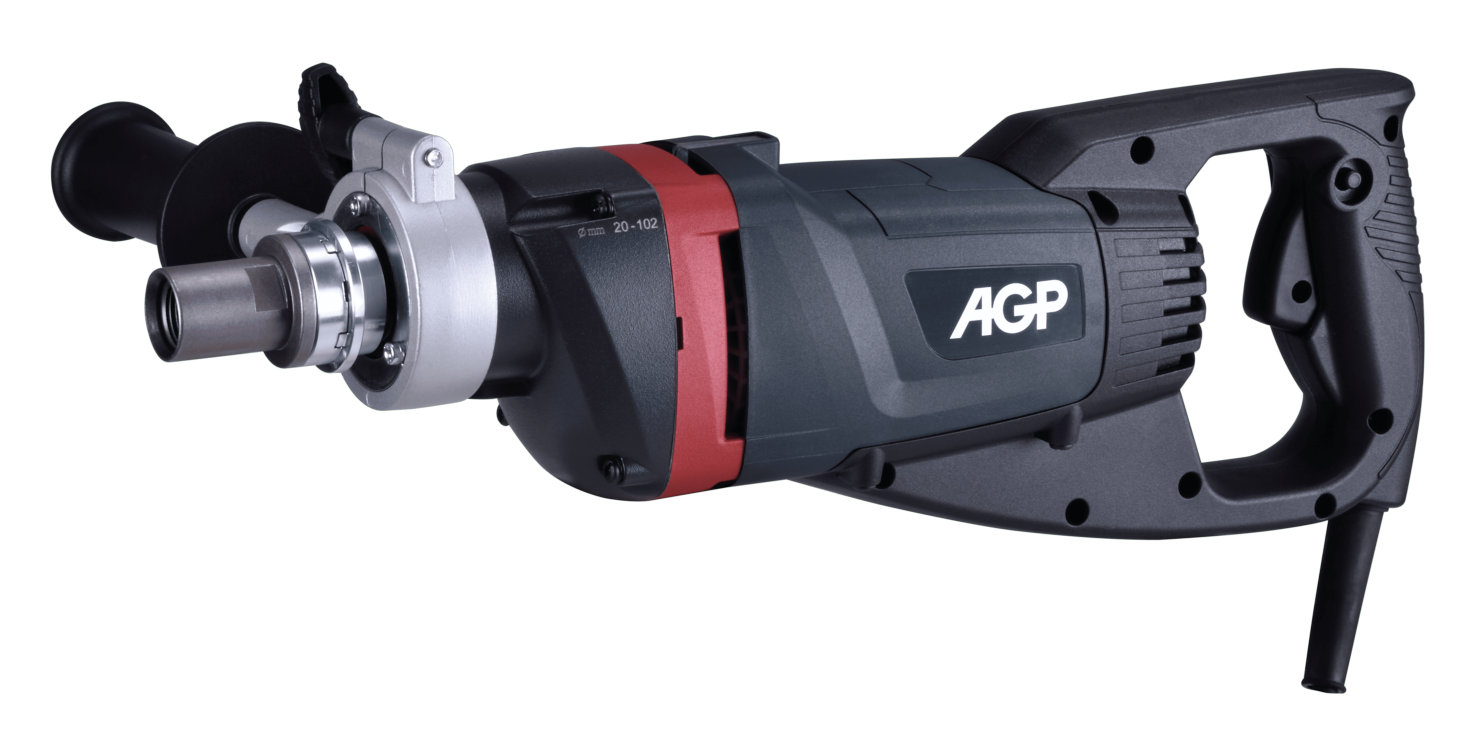

Dry Diamond Core Drill Motors

DM51D , DM51P

Light, compact, high efficiency 1800 W coring motors for dry drilling up to 102 mm.

  • Single speed gearbox with clutch.
  • Electronic motor management with soft start, overload and thermal protection.
  • Horizontal spirit level for precise alignment.
  • Switchable soft percussion for optimized dry drilling.
  • Side handle in-line with spindle centerline for best control.
Power:
1800 W
Max. Capacity:
Dry: 102 mm
Type:
Dry drilling (brick)
Dry Capacity:
Weight:
Specifications
  • Model
  • DM51D/P
  • Power Input
  • 1800 W
  • Voltage, Frequency
  • 220-240 V~ 50-60 Hz or 110-120 V~ 50-60 Hz
  • No Load (Rated Load) Speeds
  • 3600 (2160) /min
  • Percussion Frequency, No Load (Rated Load)
  • 56,000 (36,400) b/min
  • Spindle Thread
  • 1/2" BSP female (also available M18-2.5 male) ( Specify when ordering)
  • Capacity-Dry
  • 102 mm (4")
  • Soft Start & Overload Protection
  • With
  • Mechanical Safety Clutch
  • With
  • Insulation Class
  • Class II
  • Dimensions (L x W x H)
  • DM51P : 390 mm x 90 mm x 280 mm
    DM51D : 450 mm x 90 mm x 210 mm
  • Neck Diameter
  • 60 mm
  • Weight
  • 4.6 kg (10.1 lb)
  • Exploded View & Parts List
  • Download
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Side Handle
  • Percussion Selector

Optional Accessories

  • Soft-Grip Side Handle
