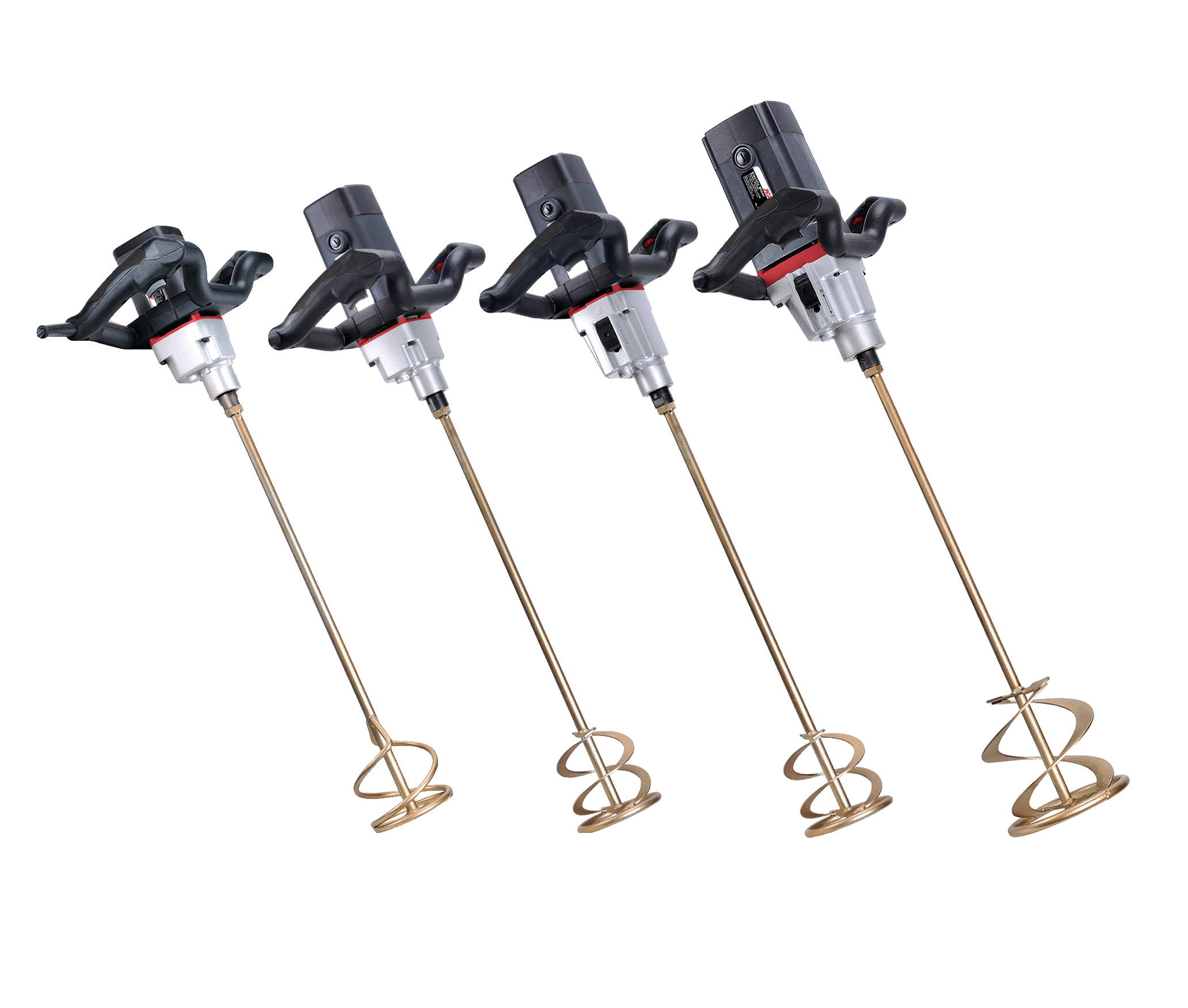

Electric Mixers

EV32 , EV42 , EV52 , EV160 , EV10ELM

Electric mixers with revolutionary ergonomic design and sturdy mechanicals.

  • Electronic speed control thumb wheel (for EV42 and above) allows the operator to adjust the speed without taking his hands off the handles.
  • Externally accessible brushes for easy maintenance
  • 2-Speed Gear Box Selector Slider (for EV52 & EV160)
  • Compound curved handle gives extra strength and ideal ergonomic hand position
  • Cut-away handle for unobstructed view of work material
  • Soft, non-slip TPR with textured surface for operator comfort
  • Staggered Vent Louvers protects motor from dust ingress
Power:
Max. Capacity:
Type:
Dry Capacity:
Weight:
Spec
  • Model
  • EV32/EV42/EV52/EV160/EV10ELM
  • Power Input
  • EV32 : 800 W
    EV42、EV10ELM : 1100 W
    EV52 : 1300 W
    EV160 : 1600 W
  • Voltage, Frequency
  • 220-240 V~ 50-60 Hz or 110-120 V~ 50-60 Hz
  • No Load Speeds (Low Gear / High Gear)
  • EV32 : 750 /min
    EV42 : 250-700 /min
    EV52 : 150-400 / 250-700 /min
    EV160 : 180-350 / 280-550 /min
    EV10ELM : 0-750 /min
  • Torque (Low Gear / High Gear)
  • EV32 : 6.0 Nm
    EV42 : 11.0 Nm
    EV52 : 27.4 / 17.3 Nm
    EV160 : 42.7 / 29.9 Nm
    EV10ELM : 12.6 Nm
  • Number Of Gears
  • EV32、EV42、EV10ELM : 1
    EV52、EV160 : 2
  • Current (110V)
  • EV32 : 7.2 A
    EV42 : 10.0 A
    EV52 : 10.9 A
    EV160 : 14.5 A
  • Current (230V)
  • EV32 : 3.6 A
    EV42 : 4.8 A
    EV52 : 5.2 A
    EV160 : 7.0 A
  • Spindle Thread
  • M14-2.0
  • Mixing Paddle (max.)
  • EV32 : 105 mm (4-1/8")
    EV42、EV10ELM : 120 mm (4-11/16")
    EV52 : 140 mm (5-1/2")
    EV160 : 160 mm (6-5/16")
  • Electronic Speed Control
  • EV32、EV10ELM : N/A
    EV42、EV52、EV160 : With
  • Dimensions (LxWxH) (Motor unit only)
  • EV32 : 322 mm x 250 mm x 190 mm
    EV42 : 322 mm x 312 mm x 190 mm
    EV52 : 345 mm x 322 mm x 190 mm
    EV160 : 350 mm x 322 mm x 190 mm
    EV10ELM : 475 mm x 380 mm x 225 mm
  • Net Weight
  • EV32 : 2.9 kg (6.1 lb)
    EV42 : 3.6 kg (7.9 lb)
    EV52 : 4.1 kg (9.0 lb)
    EV160 : 5.6 kg (12.4 lb)
    EV10ELM : 4.8 kg (10.6 lb)
  • Switch (EV10ELM)
  • Variable Speed
  • Handle (EV10ELM)
  • Tubular Steel
Download & Warranty
No items found.
Accessories

Standard Accessories

  • Wrench  22 mm
  • Mixing Paddle with 2 Helix
  • Soft Start on models EV42, EV52, EV160
  • Wrench M22 (EV10ELM only)
  • Wrench M13  (EV10ELM only)
  • M6 L-Hex Key(EV10ELM only)
  • M14 Adaptor (EVP180, EV21 only)
  • 13 mm Chuck & Chuck Key (EVP180, EV21 only)

Optional Accessories

  • Mixing Paddles
  • Variable Speed Switch (EV10ELM only)
  • Soft Start (EV21 only)
