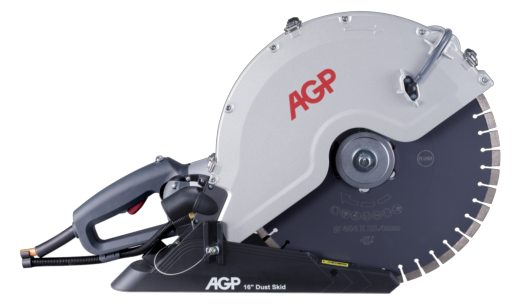

High Frequency Concrete Saw

C406 + P8K Power Converter

【available from AGP Europe】

406 mm (16") concrete saw with 6600 W high frequency permanent magnet synchronous motor for up to 150 mm depth of cut. Flush cut capability.

  • LED Indicator Indicates load conditions
    (electronic & thermal protection).
  • Constant speed is maintained regardless of load.
  • Integrated water feed system with fine adjustable flow and quick release coupling.
  • Tool-free detachable guide rollers for perpendicular cuts and reduced operator fatigue.
  • Tool-free detachable splash guard.
  • Tool-free blade guard angle adjustment.
  • Hall Effect Switch is completely waterproof and dustproof.
  • Handles designed for optimal control.
  • Quick removable brush for slurry.
Power:
6600 W (3∅~380-480 V) | 5500 W (1∅~200-240 V @ 32A) | 3600 W (1∅~200-240 V @ 16A)
Max. Capacity:
150 mm Depth of Cut
Type:
Concrete Saw
Dry Capacity:
Weight:

LED Indicator Indicates load conditions (electronic & thermal protection).

Tool-free detachable guide rollers for perpendicular cuts and reduced operator fatigue.

Integrated water feed system with fine adjustable flow and quick release coupling.

Flush cutting

Specifications
  • Model
  • C406
  • Power Input
  • 3Φ~380-480V : 6600 W
    1Φ~200-240V : 3600 W (16A), 5500 W (32 A)
  • No Load Speed
  • 3900 /min
  • Linear Speed w/16" blade
  • 82.9 m/s
  • Blade Diameter
  • 406 mm (16")
  • Arbor
  • 25.4 mm (1")
  • Max. Cutting Depth
  • 150 mm (6")
  • Soft Start & Overload Protection
  • With
  • Cable Length
  • 6 M
  • Dimensions (L xWx H)
  • 780 x 260 x 300 mm
  • Weight
  • 10.5 kg (23.1 lb)

  • Model
  • P8K
  • Power Input (maximum)
  • 3Φ~380-480 V : 16A 8000 W
    1Φ~200-240 V : 32A 7000W
  • Min. Water Flow (25°C)
  • 3.5 L/min (1 gpm)
  • Max. Water Pressure
  • 7 bar (100 psi)
  • Dimensions (LxWxH)
  • 460 x 220 x 260 mm
  • Weight
  • 7.1 kg (15.6 lb)
  • Exploded View & Parts List
  • Download
  • Video
  • Flush Cut Setting Up
Exploded View & Part List
No items found.
Accessories

Standard Accessories

  • Hex Key (M3)
  • Wrench (M17)
  • Flush Cutting Flange Kit (choose 60 mm or 88.9 mm)
  • Flush Cut Cover Set
  • Plastic Carry Case

Optional Accessories

  • 406 mm (16") Flush Cutting Blade (88.9 mm)
