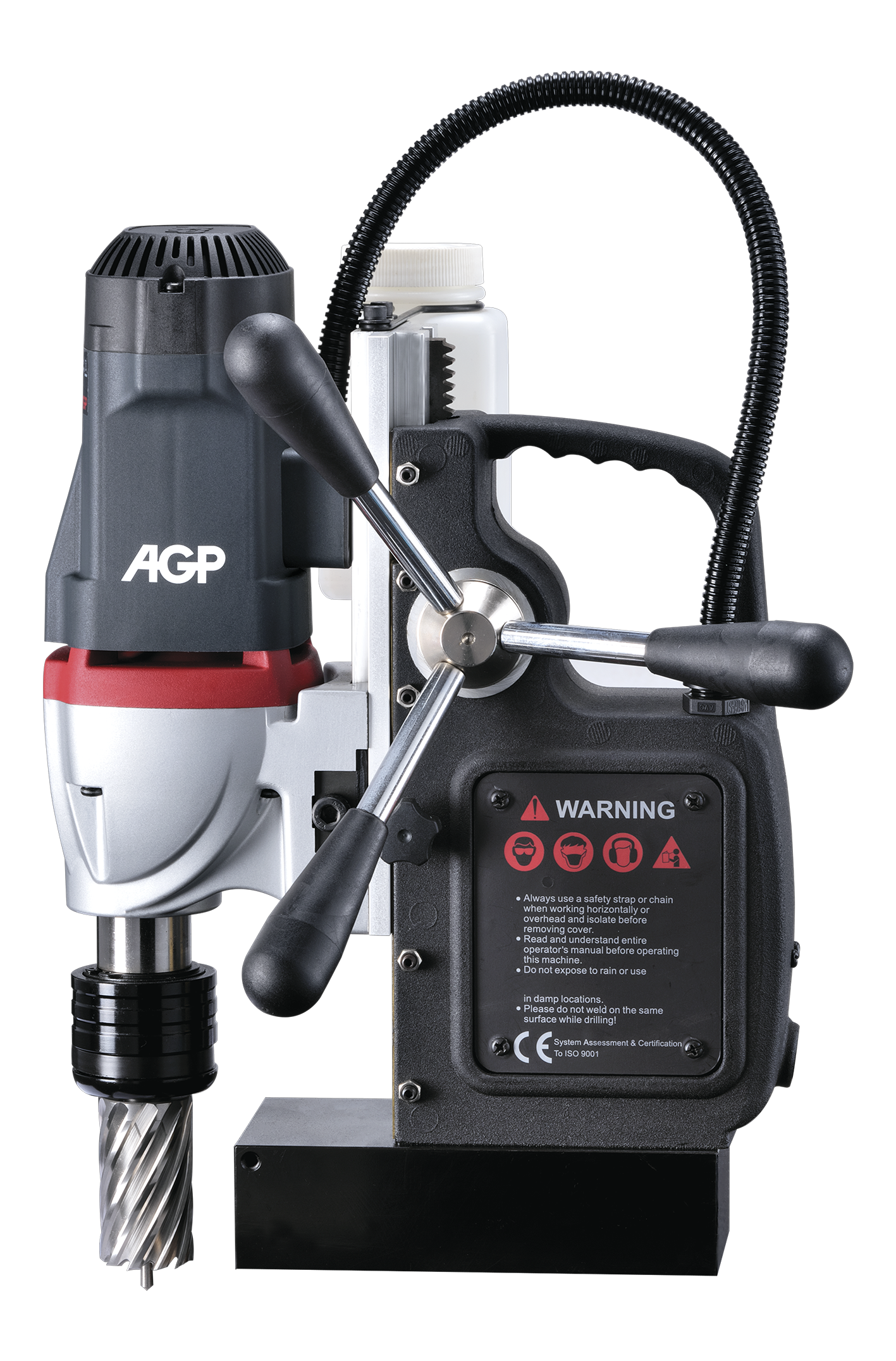

4 Speed Magnetic Drilling & Tapping Core Drills

MD750/4 , MDS750/4

4-speed 2000 W heavy-duty magnetic drilling machine for cutters up to Ø 75 x 50 mm, twist drills up to 32 mm, and taps up to 25.4 mm.

The MT3 arbor can also fit many other types of cutting tools. MDS750/4 features swivel Base for difficult to reach areas.

  • 4 speed gear box for optimized torque and cutting speed for a wide range of cutting tools.
  • Built-in cutting fluid system with unique through-the-spindle fluid feed.
  • Reversing Switch for tapping.
Power:
2200 W (220 V), 1700 W (110 V)
Max. Capacity:
Annular Cutters: 75 mm x 50 mm / Twist Drills: 32 mm x 150 mm / Taps: 25.4 mm
Gear:
Type:
Annular Cutting, Twist Drilling, Tapping, and more
Dry Capacity:
Weight:
Spec
  • Model
  • MD750/4, MDS750/4
  • Power Input
  • 2000W (220V), 1700W (110V)
  • Voltage
  • 220-240V~ 50-60Hz or 110-120V~ 50-60Hz
  • No/Full Load min-1 Speed 1
  • 150 / 90
  • No/Full Load min-1 Speed 2
  • 200 / 120
  • No/Full Load min-1 Speed 3
  • 300 / 180
  • No/Full Load min-1 Speed 4
  • 380 / 230
  • Max. Capacity Dia. X Depth of Cut
  • 75 mm x 50 mm (3" x 2")
  • Max. Capacity Dia. X Depth of MT3 Twist Drill Bit
  • 32 mm x 150 mm (1-1/4" x 4-7/8")
  • Max. Capacity Dia. X Depth of MT3 Chuck Adaptor With Twist Drill Bit
  • 16mm x 110mm (5/8" x 4-1/2")
  • Max. Capacity Dia. X Depth of Taps
  • 25.4 mm x 40 mm (1" x 1-9/16")
  • Magnetic Adhesion
  • 32,000 N
  • Overload Protection
  • With
  • Net Weight
  • 24.4kg (53.79 Lbs)
Download & Warranty
No items found.
Accessories

Standard Accessories

  • MT3 Annular Cutter Arbor (set screw type)
  • Wrench M8
  • L-Hex Key M2.5
  • L-Hex Key M4
  • Chip Guard Kit
  • Coolant Tank Kit
  • Ratchet Strap
  • Drift
  • Wrench M17 (MDS750/4)

Optional Accessories

  • MT3 Chuck Adaptor
  • 5/8" (16 mm) Chuck & Chuck Key
  • MT3 Tapping Adaptors
  • Tapping Attachments
  • Pipe Vise For Pipe Diameters 32 mm - 203 mm (1-1/4" - 8-1/4")
  • Quick-Release Arbor (MD750/4)
  • MT3 Quick-Release Annular Cutter Arbor (MDS750/4)
